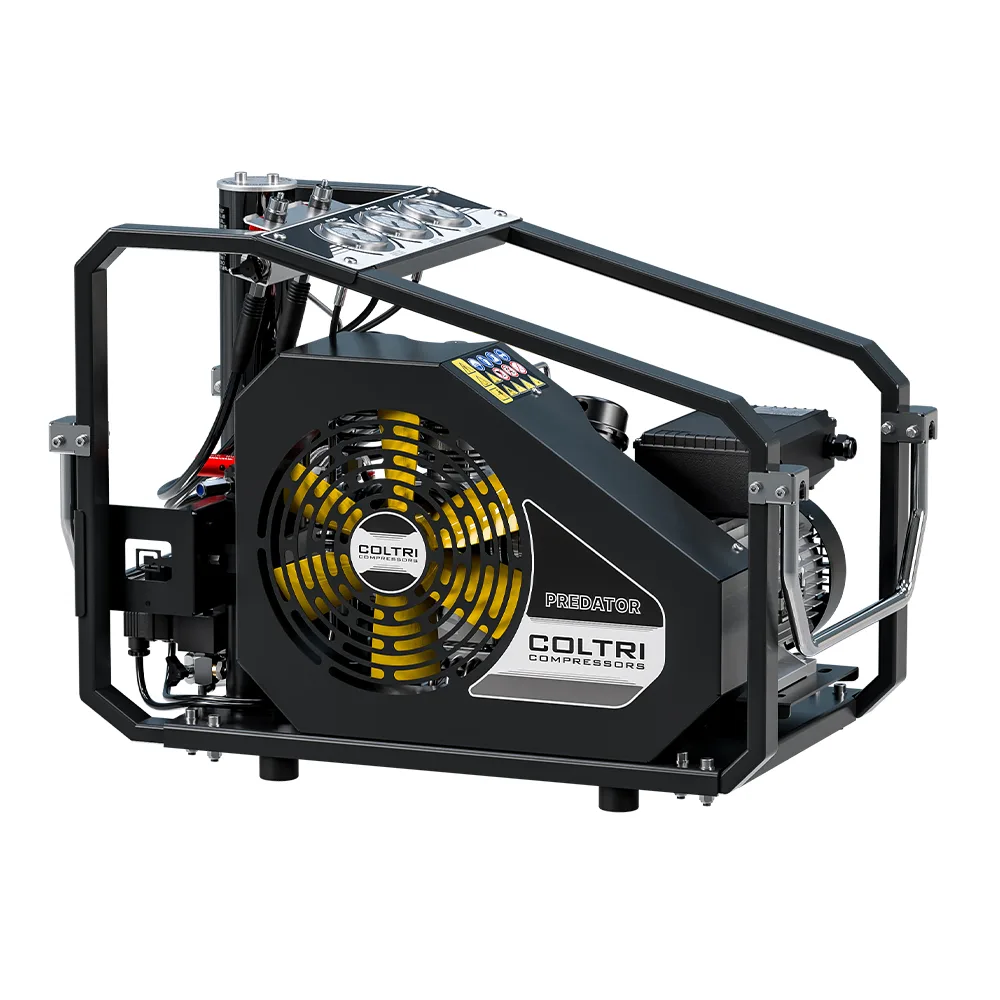

PREDATOR 315 EM (20A)

Introducing the new PREDATOR from Coltri Compressors – the latest addition to the Portable Line, engineered to deliver exceptional performance in a compact form. Offering an air flow rate of 140 l/min and powered by a 3 kW single - or three-phase motor, it combines efficiency with dependable reliability wherever you need it.

Standard features include automatic condensate drain and auto-stop, along with the advanced MCH 7 three-stage pumping unit and the Maxifilter purification system to guarantee consistently clean air. Designed with ergonomic handles for effortless transport, it also supports the optional C-Monitor, enabling real-time tracking of filter status and oil changes.

Compact. Powerful. Intelligent.
The PREDATOR is built to take on any challenge.

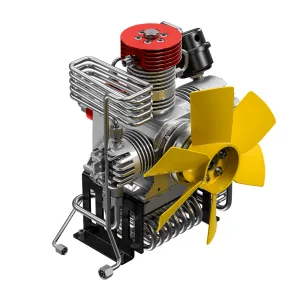

Technical data pumping unit MCH 7

• Speed (RPM): 2.250
• Number of stages: 3
• Number of cylinders: 3
• Cylinder bore 1st stage: 78 mm
• Cylinder bore 2nd stage: 32 mm
• Cylinder bore 3rd stage: 14 mm
• Stroke: 20 mm
• Direction of rotation (from flywheel side): Clockwise (right)
• Drive type: V-belt A type
• Intermediate pressure 1st stage: ~ 4,5 bar
• Intermediate pressure 2nd stage: ~ 16 bar
• Amount of oil: 1 liter
• Max intake pressure: 1,3 bar – 300 millibar
